Pneumatic Remote Control Head

RCH Remote Control Head

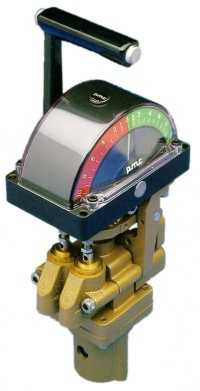

Type 5022 RCH

Dependable Precise Control

RCH pneumatic control heads provide remote control for a wide range of marine and industrial applications

Illumination

Optional illumination is available with a variety of scales

Watertight

Completely watertight design allows outside installation even on models with electrical devices or illumination

Rugged Construction

Built to endure heavy use. All cams and detents have roller followers for reduced wear and smooth operation. A rugged friction brake eliminates slack or creep

Corrosion Resistant

RCH control heads are built with materials that are compatible with the hostile marine environment

Versatility

Modular construction allows many configurations of pressure regulators and directional valves, optional potentiometers and switches, and many control handles in red or black.   Standard control lever movement is 140°.

Dimensions above Console (without gasket)

Width: 120 mm
Length: 150.5 mm
Height: 157 mm

RCH Configurations

Type Description Typical Applications
RCH-V One variable pressure signal Brake control or engine speed control
RCH-VAA One variable pressure signal and two on-off (AHD/AST) signals Pitch & speed control for CPP, or clutch & speed for fixed pitch propellers
RCH-2V Two variable (AHD/AST) signals Thruster control, hydraulic slip clutch control or winch control
RCH-VSS One variable pressure signal and two normally open switch contacts Same as RCH-VAA but used with solenoid valves for on-off signals to minimize time delays
RCH-VA One variable pressure signal and one on-off signal Single clutch and throttle control
