Azimuth Control Head - Digital
Power and 360° Control

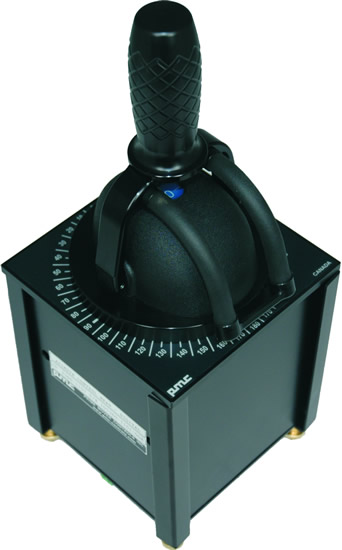

Azimuth Control Head

Type 5360-1100

Features

  • Integrated propulsion control with 'one handed' operation of power and 360° rotation
  • Illumination, 100% dimmable
  • Adjustable friction brakes
  • Removable terminal blocks for 14 to 20 AWG wires
  • Can be used with Type 8161 Azimuth Meter

Options

  • Custom power and rotation scales
  • Maximum four potentiometers for power
  • Maximum three potentiometers for rotation
  • Detents with adjustable detent forces
  • Numerous power lever travel options available
  • Available for limited rotation applications such as water jets or propulsion power combined with rudder control

Specifications

Environmental:

  • Corrosion resistant
  • Anodized marine grade aluminum case
  • Operating temperature -25 °C to +70 °C
  • Storage temperature -40 °C to +85 °C
  • Protection classification IP66 above console
  • Meets or exceeds marine classification and regulatory requirements for Electromagnetic Compatibility, Vibration, Temperature, Humidity and Voltage Variation

Physical:

  • Dimensions 196 mm H x 196 mm W x 364 mm D (without gasket)
    (7.72" H x 7.72" W x 14.33" D)
  • Weight 2.6 kg (5.8 lbs)
  • Flush mount
  • Removable terminal blocks for 14 to 20 AWG wires
