Propulsion Control Head
Electric Shaft / Pneumatic

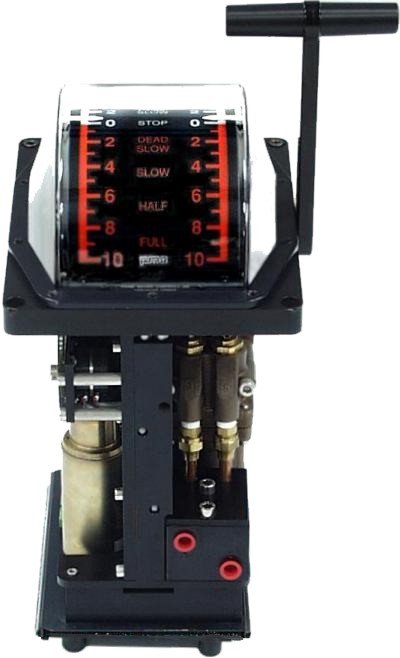

2 in 1 Propulsion Control Head

Type 5402-2000 PCH-VAA-ES

The Type 5402-2000 2 in 1 remote propulsion control head has a variety of features incorporated into one assembly.

  1. Electric Shaft
  2. Pneumatic Outputs

This type of control head is often installed in the engine control room.  Standard control lever movement is 140°.

This unit can also be used for redundant electronic and pneumatic command signals, ie. Woodward governor system using PGA-EG Governor/Actuator.

Dimensions above Console (without gasket)

Width: 233 mm (247 mm two handles)
Length: 260 mm
Height: 211 mm
