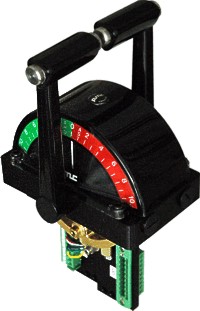

TYPE 5800-3000 MCH-ET REMOTE CONTROL HEAD

Specifications

Electrical:

  • Dual 2.5 kW lever position sensors
  • Illumination 24 VDC nominal

Environmental:

  • Sealed lever position sensors
  • Operating temperature -40 to +120°C
  • Storage temperature -40 to +120°C
  • Vibration: Frequency range 2 to 100 Hz
  • Peak to peak amplitude 2 mm below 13.2 Hz
  • Acceleration amplitude 0.7 g above 13.2 Hz
  • CE compliant for EMC (IEC/EN60945)
  • Meets or exceeds marine classification and regulatory requirements for Electromagnetic Compatibility, Vibration, Temperature and Humidity

Physical:

  • IP66 Above console with supplied gasket, IP43 below console
  • Weight, typical 2 kg (5.25 lbs)
  • Removable screw terminal blocks for 14 to 20 AWG wires
  • Standard mounting kit: M6 x 1.0 screws and washers (x4)
  • Contact PMC for optional mounting arrangement

Dimensions above console: (without gasket)

    Width: 113 mm (132 mm two levers)
    Length: 150 mm
    Height: 157 mm (195 mm long levers)

Features

  • Rugged construction with corrosion resistant materials
  • Water tight above console surface
  • Dual sealed lever position sensors
  • Single or dual control levers
  • Adjustable travel stops
  • Many detent and friction arrangements
  • Removable screw terminal blocks

Options

  • Illumination
  • Coupling handles
  • Custom scales
  • Variety of lever styles
  • Triple screw lever arrangement

Applications

  • Marine propulsion
  • Thruster
  • Winch
  • Industrial
