PMC Series 8014 LED Navigation Light Control

The Series 8014 system is a compact control, alarm, and monitoring system specifically for LED Navigation Lights.

When an active LED navigation light fails, visual and audible alarms are activated, and the back-up navigation light will automatically turn on.

Consisting of two parts, the below console Controller keeps power and distribution wiring away from the console surface while the console mounted Display is an easy to install unit (one cutout & one small cable) that provides all the controls, indicators, and functions you need to control your LED navigation lights.

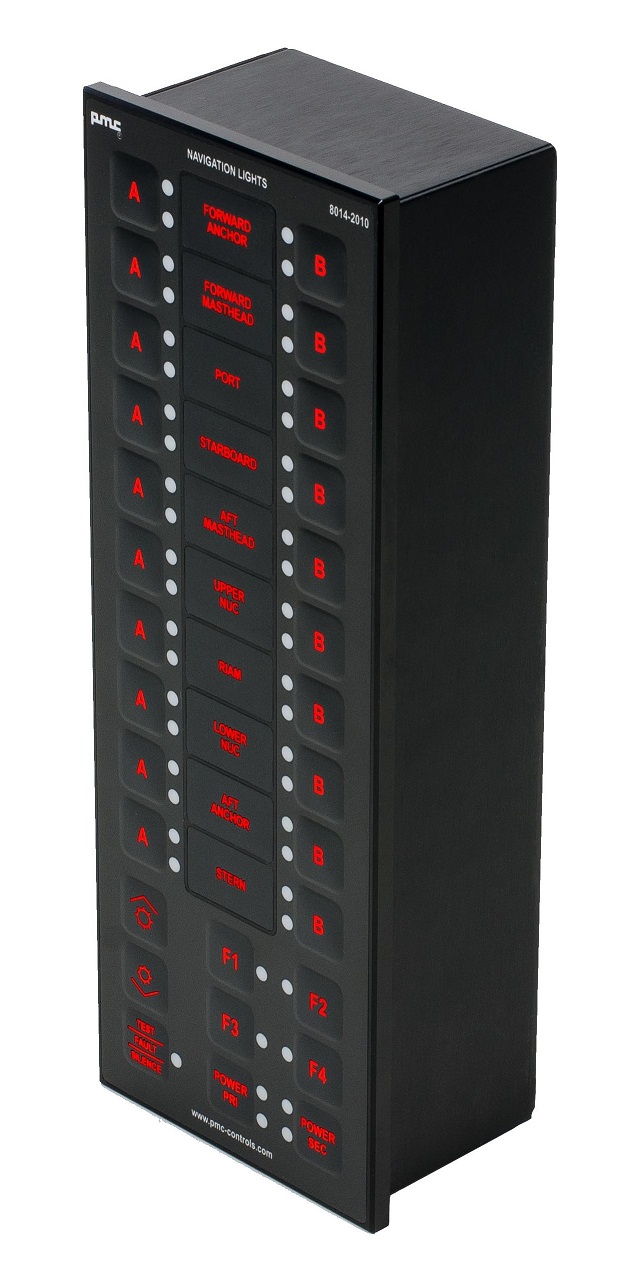

The PMC 8014-201x LED Navigation Light Display is the console mounted interface for the LED navigation light control system.

This compact unit provides all the controls, indicators, and functions you need to control your LED navigation lights. The Display is an easy to install unit requiring only one cutout & one network cable.



Some of the 8014-2010 / 2014 Controller features:

    ~ Super bright indicators for day light operation

    ~ Backlit buttons and labels for night operation

    ~ Dimmable buttons, labels and indicators

    ~ Group dimming when using multiple display panels (optional)

    ~ Function keys to change multiple lamps or lamp functions

    ~ Lamp test

    ~ Alarms

    ~ Adjustable alarm horn

    ~ IP65 splash proof front

    ~ Isolated network link for 8014 system

    ~ Up to 9 Controllers and 9 Display Panels can be interconnected

    ~ Self diagnostics and troubleshooting display

Options

    ~ 10 or 14 lamp positions ( 10 Lamp controller shown )

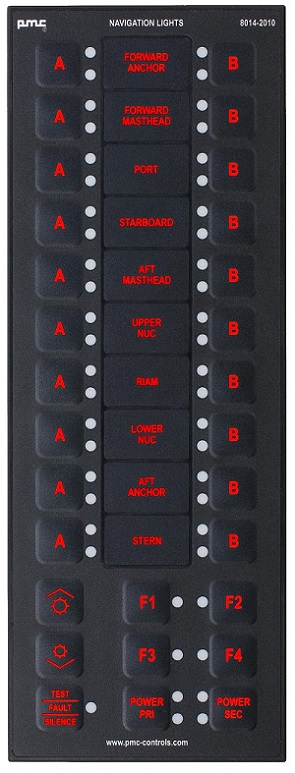

8014-2010 LED Nav Light Display8014-2010 LED Nav Light Display

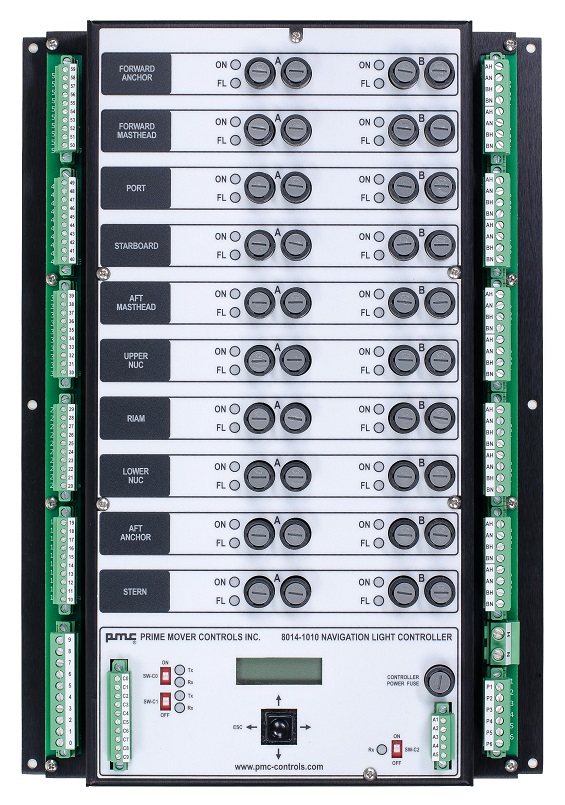

The PMC 8014-101x LED Navigation Light Controller is the below console brains and power behind LED navigation light control system.

All power, lamp, network, and control wiring is terminated to the controller eliminating the need to run all that wiring to your console surface. This allows easier pre-wiring and a much cleaner console.



Some of the 8014-1010 / 1014 Controller features:

    ~ Single, Twin or Dual LED Lamps

    ~ Auto transfer to back-up light

    ~ Grouping of common task lights to activate together

    ~ Monitored primary and secondary power feeds

    ~ 12VDC, 24VDC, 120VAC or 240VAC

    ~ Alarm relay

    ~ 2 Isolated RS485 Communication Ports (Modbus RTU Slave or NMEA)

    - Modbus RTU Slave for connection to vessel alarm and monitoring system

    - Modbus RTU Slave for connection to computer / touch screen for monitoring and control

    - NMEA 0183 for connection to voyage data recorder "Black Box"

    ~ Isolated network link for 8014 system

    ~ Up to 9 Controllers and 9 Display Panels can be interconnected

    ~ Alarm relay output

    ~ Self diagnostics and troubleshooting display

    ~ Operating features are selectable and configurable

Options

    ~ 10 or 14 lamp positions ( 10 Lamp controller shown )

    ~ Inputs / outputs for remote mimic panel

8014-2010 LED Nav Light Controller

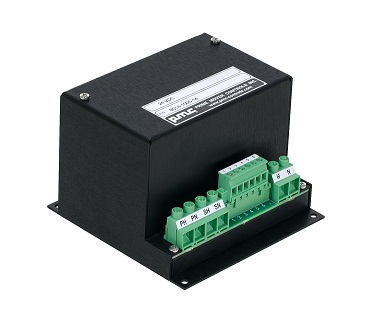

The PMC series 8014-1005 Power Select Module is used with the LED Nav Light Controller to allow the controller to manually or automatically select between primary and secondary power sources.



Some of the 8014-1005 Power Select Module features:

    ~ 30 amp capacity

    ~ 12VDC, 24VDC, 120VAC or 240VAC

    ~ Primary and secondary power OK outputs

Models:

    ~ 8014-1005-01 - 120 volts AC

    ~ 8014-1005-02 - 240 volts AC

    ~ 8014-1005-05 - 12 volts DC

    ~ 8014-1005-14 - 24 volts DC

8014 LED Navigation Light System

8014-0000-tr

8014 LED Nav Light Control system PDF
