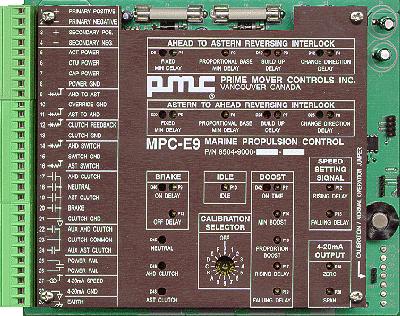

Electronic Logic and Control Panel

Type 8504 MPC-E9

Application

Propulsion controls for small and large vessels with fixed pitch propellers, reversing gears and hydraulic, or pneumatic clutches.

Features

• Compact Size
• Easy Installation
• Controlled Engine Acceleration
• Separate Clutch Pressure Interlock
• Fixed and Proportional Timed Reversing Interlock
• Signal for Brake Control
• Proportional Power Boost.

General Description

The MPC-E9 electronic panel is a compact and modular design that provides propulsion control for vessels with fixed pitch propellers, reversing gears and hydraulic or pneumatic clutches. The MPC panel contains all necessary logic, interlocks and timing to ensure that the engine and reverse gear operate properly, smoothly and safely. An electric signal for operating a shaft brake is also provided. All timing settings are pre calibrated to predetermined specifications, and documented at PMC prior to shipment.

The MPC-E9 can work with several of PMC's other electrical products such as the: 8502-9000 power supply, 8502-9011 driver amp, 8502-9013 clipper amp, 8502-9017 control transfer unit by combining the MPC-E9 with other PMC products virtually any system configuration can be easy produced, calibrated, and tested.
