Graphic Display

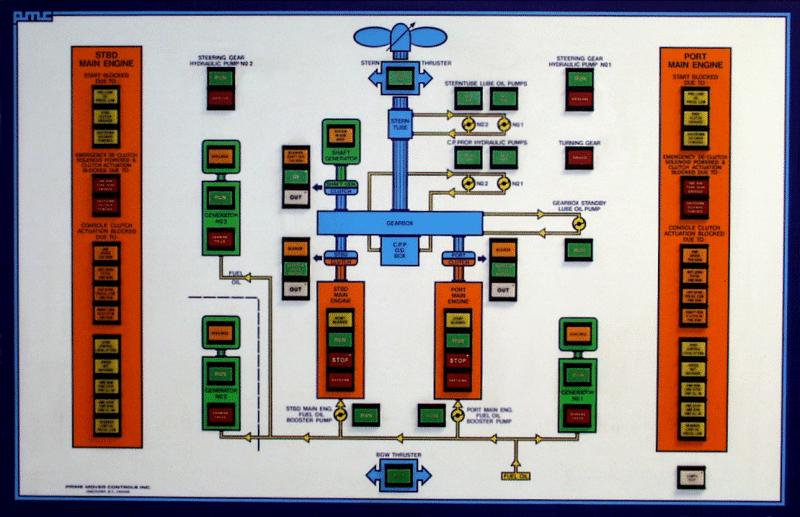

Mimic

Applications

• Safety system
• Machinery display
• Logic functions
• Flow diagrams
• Fire zones
• Switchboard bus
• Watertight doors
• Watchman's patrol
• Ballast/bilge
• Emergency exits
• Main propulsion
• Control and status 1 2
• Auxiliary machinery
• Electric power equipment
• Fire doors
• Ship security
• Window heaters
• Fire pumps
• CO₂ release zones
• Navigation lights
• Steam turbine control systems 1 2 3 4

Features

• Accurately defined multi-colored graphics.
• Customer specified symbols and designs.
• Custom dimensions and mounting arrangements.
• Durable, non-glare fade resistant finish.
• Easily cleaned with common detergents.
• Permanently bonded to rigid backing plate.

Options

• Clear acrylic protective cover.
• Back-lit translucent window areas.
• Lamp or illuminated push-button assemblies with dual front replaceable bulbs.
• High intensity LED status indicators.
• Dimmers for illuminated display.
