PMC Type 5078 SCH-C Remote Control Head

The SCH-C is a compact control head suitable for a wide range of marine and industrial applications. Including main propulsion, bow / stern thrusters, and winches.



Some of the SCH-C features:

    ~ Maximum performance without comprimise

    ~ Compact design simplifies armrest installation

    ~ Redundent control lever position sensing

    ~ Watertight above the console

Options

    ~ Chrome or black housing finish

    ~ Single or Twin levers

    ~ Various lever styles and lenghts

    ~ Various 'L' and/or 'T' handle grips

    ~ Straight or curved control lever with knob

    ~ Engraved scale on housing

    ~ Safety latch locks in one, two or three positions. Available only with straight control lever and knob arrangement.

    ~ Top mounting for easy installation

    ~ Waterproof lower housing

    ~ 140 degree lever travel standard (consult factory for alternate lever travel)

    ~ Up to 11 detents.

Dimensions above Console (without gasket)

    Width: 112mm
    Length:
    106mm
    Height: 98mm





5078-1006_500

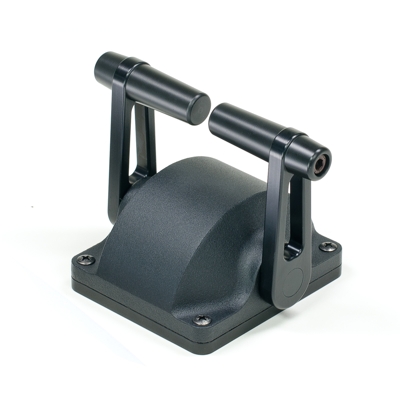

SCH-C Small Control Head - Cast

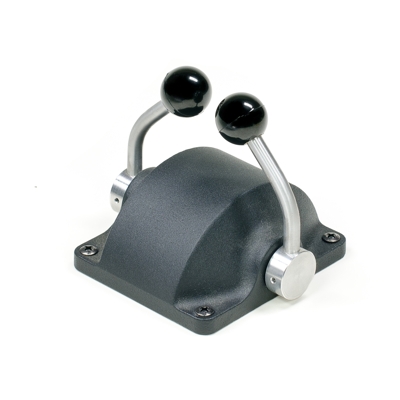

SCH-C head with curved levers and knobs

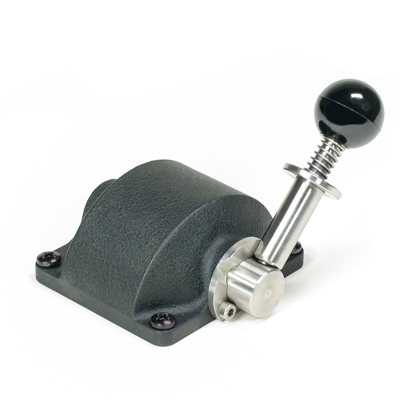

SCH-C head with safety lock (two position shown)

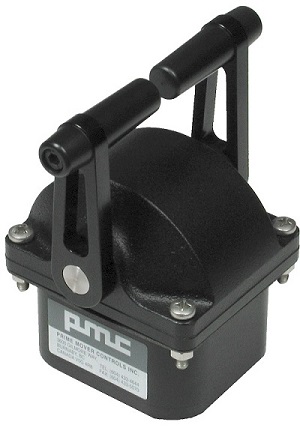

SCH-C head with watertight enclosure

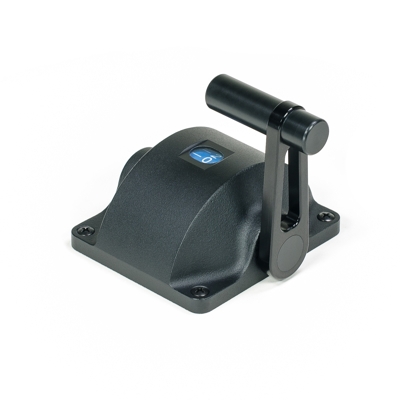

SCH-C head with single handle & scale window

5078-1000-tr

SCH-C product bulletin PDF

8014-4-01-tr

See also the SCH-M product page
