Type 5500-5000 DCH REMOTE DISPLAY

The Type 5500-5000 DCH Remote Display is required when using control heads other than the Type 5500 DCH in Type 85500-2000 MPC-D and Type 8550-3200 MPC-CP propulsion control systems. The remote display accepts lever position outputs from the control heads and provides the interface with the control boxes.

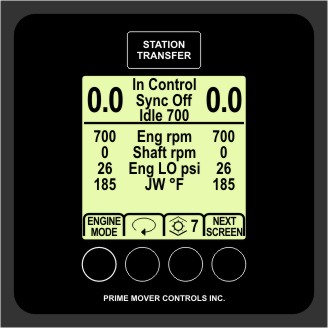

A dimmable multi-function screen provides display of control and machinery status in imperial or metric units. Four soft buttons and one dedicated station transfer button complete the user interface. Screens can be configured to display the most basic system information or more comprehensive data.

Items for display include: control system displays and alarms, control lever position, transfer status, engine operating parameters available from the engine serial link and shaft rpm (optional). Gear engagement is available for fixed pitch systems and pitch indication is available for controllable pitch systems.

Features

  • Backlit, dimmable, 160 x 160 pixel graphical LCD
  • Control and machinery status display (metric or imperial) and integral horn
  • Shaft rpm and engine rpm are available on each LCD
    Gear engagement is available for fixed pitch systems
    Pitch indication is available for controllable pitch systems
  • Four membrane buttons with intuitive software menu in plain English
  • Dedicated station transfer button
  • Station in command outputs for connection to auxiliary stations

Specifications

Supply:

  • Redundant power inputs
  • Nominal 12 VDC or 24 VDC, max 9 VDC to 36 VDC
  • Typical 175 mA @ 24 VDC
  • Peak 250 mA @ 24 VDC

Environmental:

  • Operating temperature -5 °C to +70 °C
    (Optional extended range from -25 °C to + 70 °C)
  • Storage temperature -30 °C to +80 °C
  • Protection classification IP66 above console, IP43 below console
  • Meets or exceeds marine classification and regulatory requirements for Electromagnetic Compatibility, Vibration, Temperature, Humidity and Voltage Variation

Physical:

  • Dimensions 116 mm L × 116 mm W × 96 mm H (without gasket)
    (4.6" L × 4.6" W × 3.8" H)
  • Weight 0.5 kg (1.4 lbs)
  • Removable terminal blocks for 14 to 20 AWG wires

Inputs/Outputs:

  • 4 lever position sensor inputs
  • 3 optically isolated nominal 24 VDC inputs
  • 3 open collector outputs 0.5 A @ 24 VDC
  • 9 open collector input/outputs 0.5 A @ 24 VDC
  • 3 RS 485 communication ports
