Algoma Central Corporation
222.5 m Seaway Bulk Carrier
MV Algoville

 The MV Algoville was fitted with a new engine and shaft generator. The controls were upgraded to a PMC digital propulsion control system. A new PMC alarm and monitoring system was also installed.

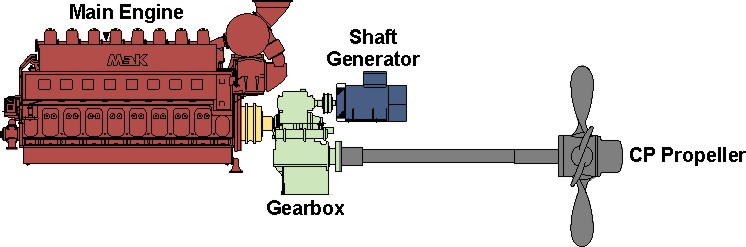

Machinery Specifications

  • 1 x MaK 8M43C main engine 8000 kW @ 500 rpm
  • 1 x Newage/Samford shaft generator @ 830 kW
  • 1 x Jahnel Kestermann PGV-1060-450 reduction gearbox
  • 1 x KaMeWa CP Propeller

PMC Supplied Equipment

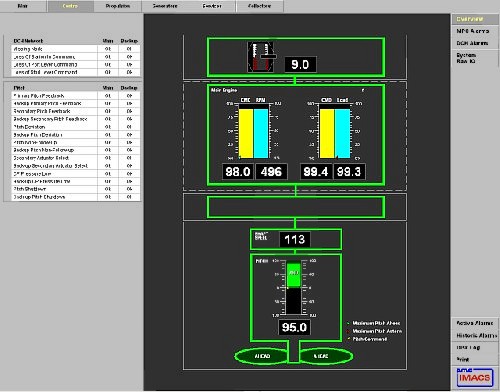

  • INTEGRATED MACHINERY, ALARM and CONTROL SYSTEM, IMACS

  • Omni Chief distributed control and monitoring system

  • Direct Communication Link to MaK Engine

  • Direct Communication Link to MaK DICARE Engine Diagnostic System

  • Direct Communication Link to Type 8101 Alarm Repeater in wheelhouse

  • Type 8421 UDC Universal Display and Control Panels

  • Monitoring and trending of exhaust gas temperatures

  • Type 8550-3200 MPC-CP Marine Propulsion Control System for vessels with controllable pitch propellers

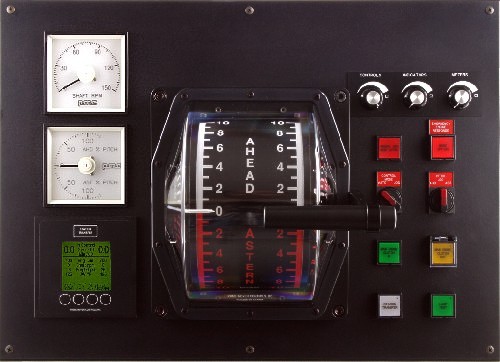

  • Drop-in Propulsion Control and Instrumentation Plates

  • Type 5400-1100 PCH Electric Shaft Control Heads with Type 5500-5000 DCH Remote Display

  • Electronic Speed Control
  • Electronic Pitch Control / Load Control
  • Type 8202-1000 Compact Propulsion Order Telegraph
