Propulsion Telegraph

Single Screw

Twin Screw

Series 8202-1000

The PMC series 8202-1000 Propulsion Order Telegraph is a compact, modular, micro-controller marine telegraph for single or twin screw systems. It operates as a stand alone or backup system. The 8202 functions independently of the ship's main propulsion controls and allows emergency operation when primary remote controls fail.

The 8202-1000 telegraph has been used on a wide variety of small to medium size vessels as originally intended.  However, its popularity has also extended to larger ships.

Features

• Eleven Port orders, eleven Starboard orders, Bridge Control orders, and a Finished with Engines order
• Independent Standby orders
• Optional wrong direction alarms
• Single or twin screw
• Forward or Aft facing
• Up to six engine room units and nine bridge units
• Super bright order indicators for daylight operation
• Backlit buttons for night operations
• Bridge units are dimmable
• Reliable communication and transceiver technology for the marine environment
• Communication cable length up to 2700 meters
• Dual 24 VDC inputs use ship's power supplies
• Relay outputs for external order and wrong direction bells
• Relay output for unit fault (communication, CPU, power or set up fault)
• Self diagnostics with status indication
• 144 mm DIN mounting
• IP65 splash proof front

Typical Installations

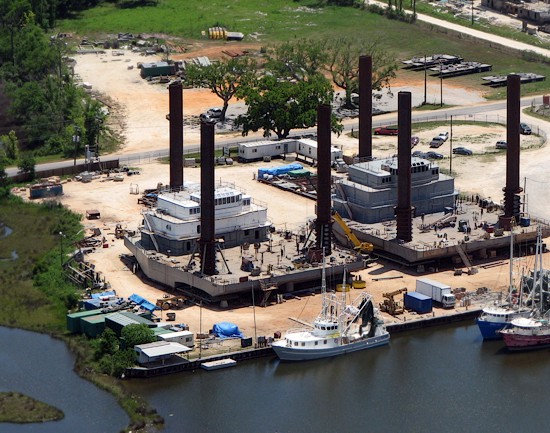

• PMC supplied Propulsion Telegraphs for two lift (jack-up) vessels constructed at Boconco shipyard.

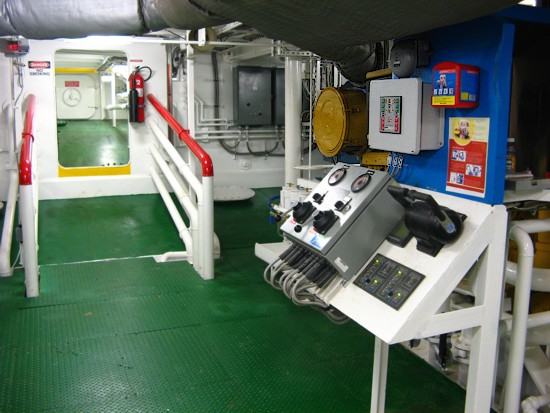

• The 52 m Research Vessel Fugro Enterprise is equipped with twin screw pushbutton telegraphs in a bulkhead mounted enclosure above the local at engine control station.
• Twin screw 91 m coastal tanker - Imperial Skeena.
• Ten 61 m  platform supply vessels for deep water drilling service.
• Three station telegraph system aboard the MV Algosteel.

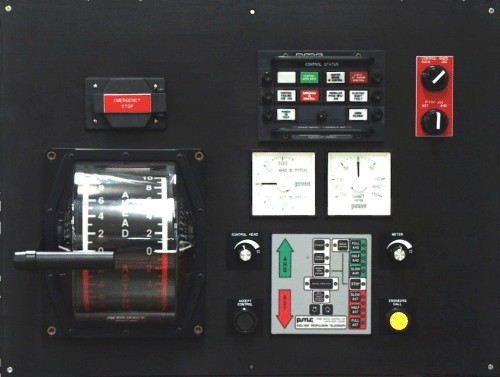

  -  Wheelhouse Control Station

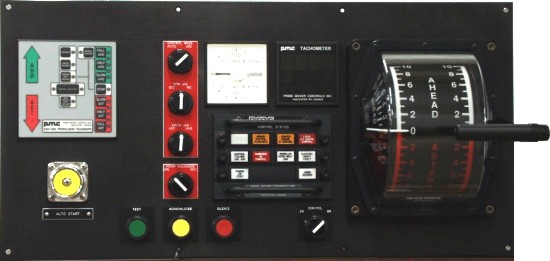

  -  Engine Control Room Station
  -  Local at Engine Station
• 222.5 m Seaway Bulk Carrier MV Algoville
