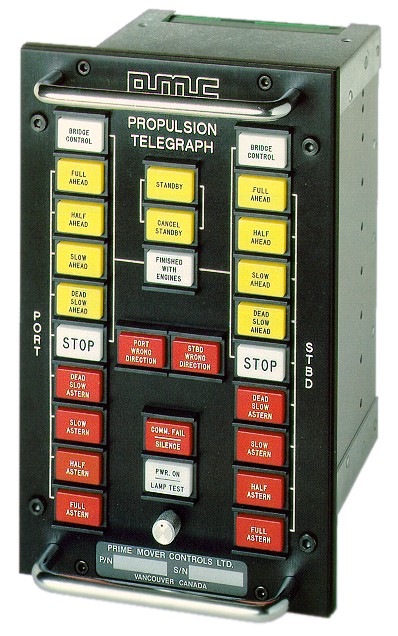

Propulsion Telegraph
Type 8201
Features
Single or twin screw
Independent standby orders
ER and BR groups may each contain up to five units
Up to 1000 meters between groups using two shielded twisted pair cables
Reliable communication by isolated current loops and software based checking procedures
Computer based logic includes extensive noise protection circuitry
Dual 24 V
DC
inputs use ship's power supplies
All inputs are protected from damage due to connection errors
Each unit alarms on communication loss, power failure and wrong direction
Includes serial port for optional data logger
Service
Dual lamps in each display are easily replaced from front
Power switch and fuses are easily accessible
Typical Installation
MV Achille
French anchor handling/tug supply vessel. One of three sister ships.
RV Atlantis
one of two 83.5 m Oceanographic Research Vessels built for the US Navy.
100.3 m T-AGS Pathfinder Class

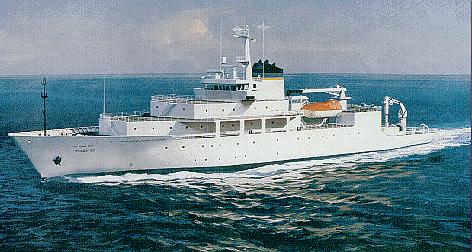

USNS Henson
and

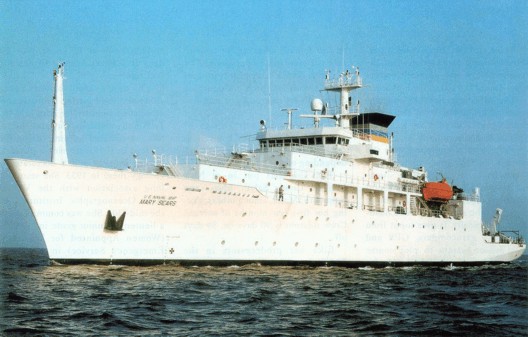

USNS Mary Sears
are two of five ABS Class C Oceanographer Survey ships built for the US Navy.
Other PMC Telegraphs
Type 5401 Lever Telegraph
Type 8202-1000 Compact Telegraph
Type 8202-2000 Azimuth Telegraph
