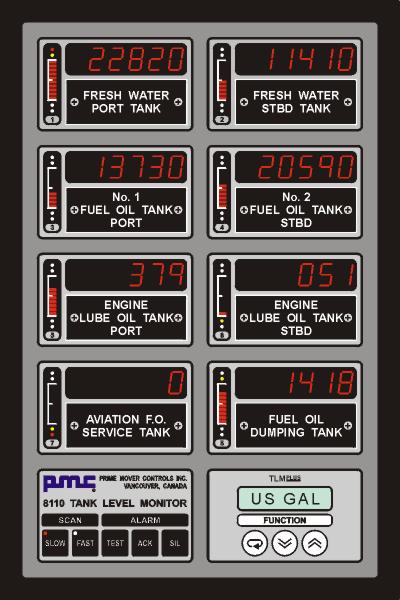

Tank Level Monitor
Features
- Monitors volume or level of eight tanks
simultaneously
- Large six digit LED displays for tank level status
- Bar graph displays percent of volume
- Backlit LCD shows unit of measure: Litres, Cubic
Meters, US & Imperial Gallons, Feet, Meters, etc.
- Up to six alarms per tank including: two high
level, two low level, high flow rate and transducer fault
- Adjustable slow and fast scan rates
- Vessel draft can be monitored
- Easy programming with front LCD or external
computer using Comm8110 Tank Level
Monitor Setup Software
- Manual entry or automated calibration of tank
shape tables
- Analog outputs for remote displays
- Relay outputs for remote alarms or pump controls
- Easy connection to PMC repeaters and alarm
products via RS-485 com. Port
- Uses standard 4 to 20 mA transducers
- IP65 splash proof, flush mount
- Marine approvals
Typical Installation

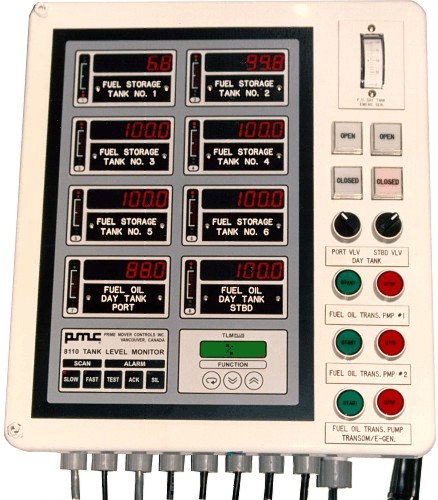

PMC tank level monitoring installation aboard the
59.7 m La Barronessa

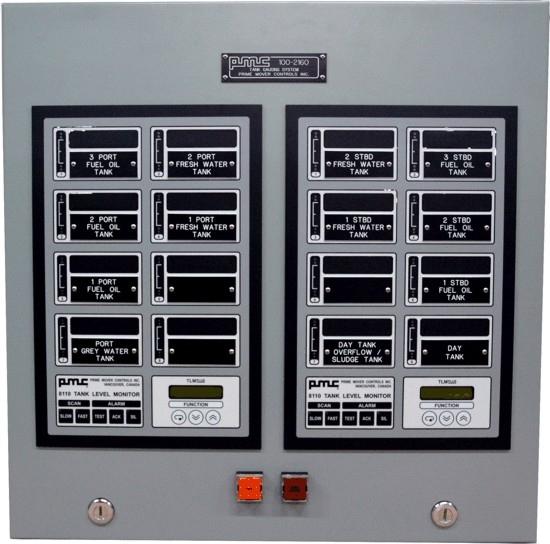

Custom
enclosure with two Type 8110 Tank Level Monitors for the CCGS Arrow Post
