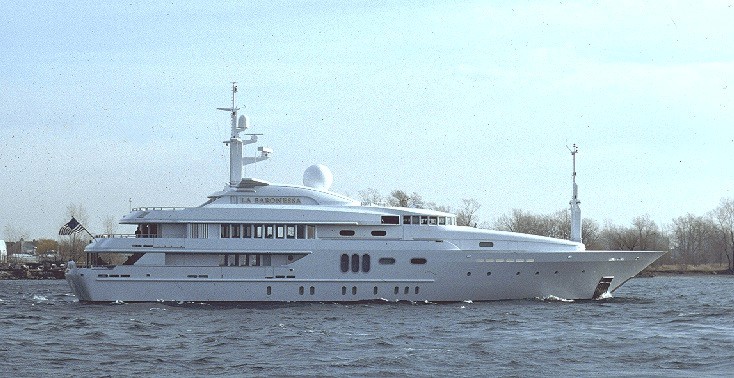

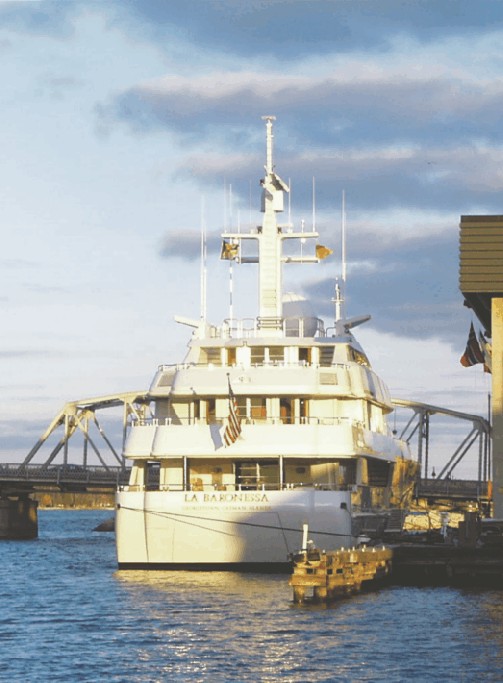

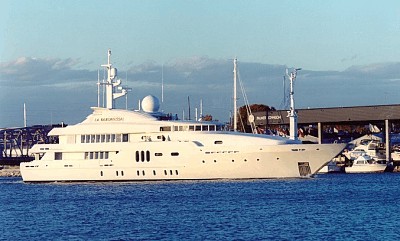

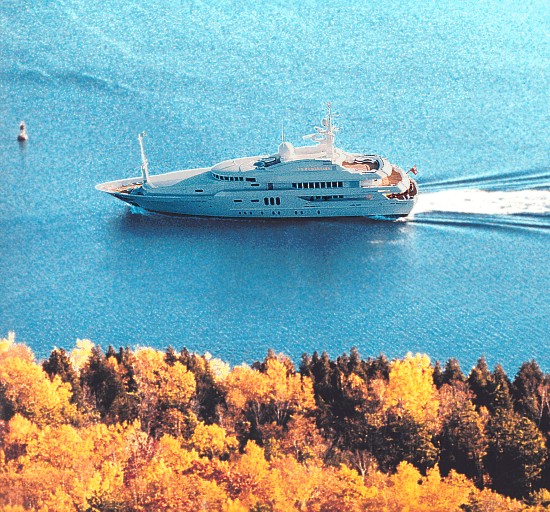

Palmer Johnson
59.7m Motor Yacht
MY La Baronessa

This super yacht is equipped with a PMC alarm and monitoring system providing continuous supervision of approximately 100 critical machinery functions, continuous level indication for 20 tanks, and an eleven zone fire alarm system with over 45 smoke and heat detectors throughout the vessel. Remote alarm repeaters are located in the Captain's stateroom, Engineer's stateroom, and crew lounge. The alarm and monitoring system consists of five Type 8001 Alarm Annunciators, six Type 8101 Alarm Repeaters and five Type 8110 Tank Level Monitors.  The use of two wire multidrop communication significantly minimizes shipboard wiring between annunciators and repeaters.  PMC's Type 8012 Navigation Light Control Panel was fitted in the wheelhouse to provide continuous supervision of the vessel's twelve navigation lights. Two Type 8201 Pushbutton Propulsion Order Telegraphs are installed to provide emergency communication between the wheelhouse and control room in case of remote control failure.

The record breaking La Baronessa is the largest privately owned vessel of any kind built in the United States since the 1930's, and the largest aluminum hull yacht in the world.


WHEELHOUSE



Tank Level Monitor

TANK LEVEL MONITOR
TYPE 8110

WHEELHOUSE



Pushbutton Telegraph

Navigation Light Panel



Alarm Repeater

PUSHBUTTON TELEGRAPH
TYPE 8201
NAVIGATION LIGHT PANEL
TYPE 8012
ALARM REPEATER
TYPE 8101

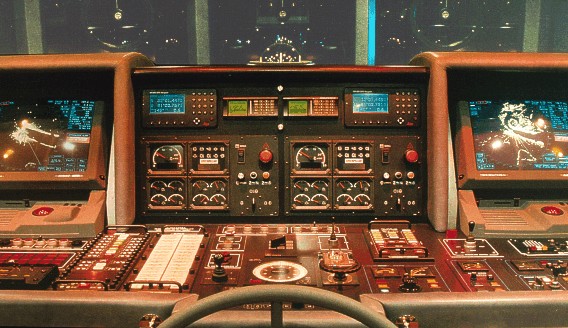

WHEELHOUSE CONSOLE



Alarm Annunciator

Alarm Repeater

ALARM ANNUNCIATOR
TYPE 8001
ALARM REPEATER
TYPE 8101

MISCELLANEOUS ALARMS



Alarm Annunciator

Alarm Annunciator

ALARM ANNUNCIATOR
TYPE 8001
ALARM ANNUNCIATOR
TYPE 8001
FIRE ALARM PANEL

CREW QUARTERS



Alarm Repeater

ALARM REPEATER
TYPE 8101

ENGINEER'S STATEROOM


Alarm Repeater

ALARM REPEATER
TYPE 8101

CREW LOUNGE



Alarm Repeater

ALARM REPEATER
TYPE 8101

CAPTAIN'S STATEROOM


CONTROL ROOM



Tank Level Monitor



Pushbutton Telegraph



Alarm Annunciator



Alarm Annunciator



Alarm Repeater

TANK LEVEL MONITOR
TYPE 8110
PUSHBUTTON TELEGRAPH
TYPE 8201
ALARM ANNUNCIATOR
TYPE 8001
ALARM ANNUNCIATOR
TYPE 8001
ALARM REPEATER
TYPE 8101

ENGINE ROOM



Tank Level Monitor




TANK LEVEL MONITOR
TYPE 8110
REMOTE LEVEL INDICATOR

FUEL MANIFOLD



Tank Level Monitor

TANK LEVEL MONITOR
TYPE 8110
FRESH WATER MANIFOLD
REMOTE LEVEL INDICATOR

NEAR SEPARATOR



Tank Level Monitor




TANK LEVEL MONITOR
TYPE 8110
REMOTE LEVEL INDICATORS
FUEL FILL STATION
