Pitch Controllers and Actuators

Type 3010 PCA-2L Pitch Controller	Type 3310 PA-ER3 Electro-Hydraulic Pitch Actuator
Type 3310-1001 PA-ER2 Electro-Hydraulic Pitch Actuator	Type 3005-1001 PA-EL2 Electro-Hydraulic Pitch Actuator

Hundreds of PMC Pitch Controllers and complete CPP propulsion control systems have demonstrated superior performance and reliability in some of the toughest testing grounds that ships can find.

Exceptional repeatability, accuracy and fast yet very stable automatic load control is achieved with these PMC controllers and systems.

These controllers are constructed in corrosion resistant materials and are available in many sizes. They have been adapted to most of the different makes of CP propellers manufactured world wide, such as: KaMeWa, Lips, Escher-Wyss, Ulstein, Liaaen, Seffle, Bird-Johnson, Berg, SSM, Hundested and Heimdal.

PMC CPP control systems often include maximum pitch and load trims. These are accomplished in various ways, for example through a touch screen in our digital electronic system, or through a knob on our pneumatic systems. Automatic load control follows the speed/power relationship of the engine(s) and is sometimes further influenced by the manifold charging air pressure from the turbo charger. PID functions are used in our electronic systems and PI functions in our pneumatic/hydraulic systems.

Typical Installations

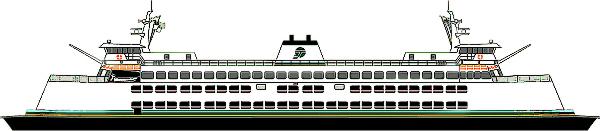

• Six 100 m double ended Issaquah Class ferries, Washington State.

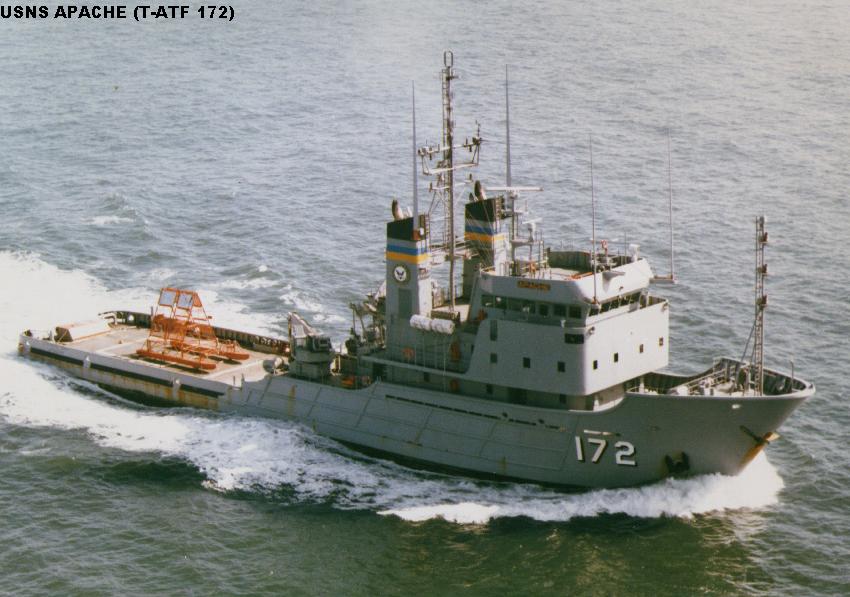

• Seven 73 m twin screw Powhatan Class Fleet Ocean Tugs - T-ATF

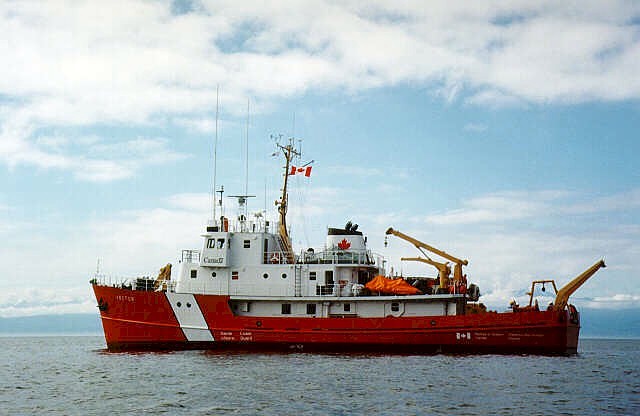

• 39.7 m CCGS Vector Coastal Research/Survey vessel with PMC control system.

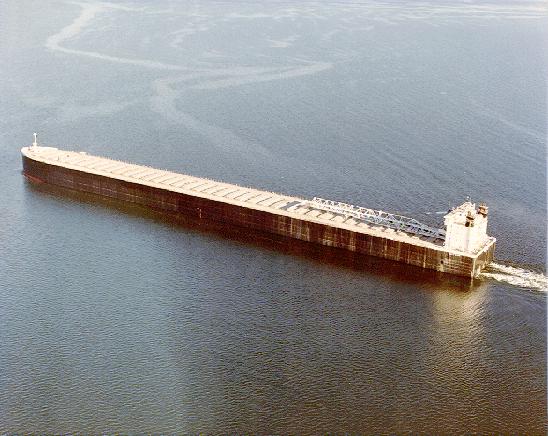

• Four 305 m Ore Carriers.

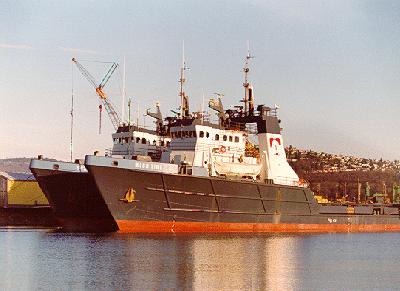

• Two 66 m Supply Vessels.

Type 3000-1001 PA-EL2
Electro-Hydraulic Pitch Actuator

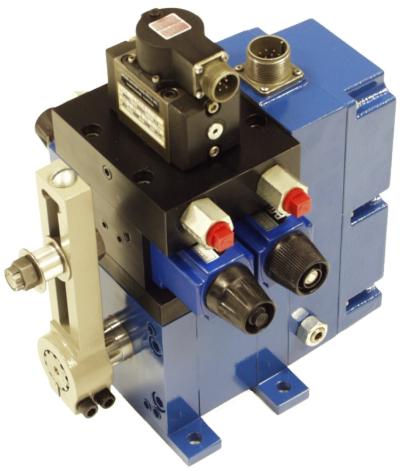

PITCH ACTUATOR WITH LINEAR OUTPUT AND REDUNDANT SOLENOID VALVES WITH MANUAL OVERRIDES

The Type PA-EL2 Pitch Actuator is a modified version of the PMC PCA Series Pitch Controllers.  Hundreds of PCA units are in use in CP propeller applications worldwide.

This PCA to PA-EL2 modification allows the existing pitch setting linkage and hydraulic pressure supply to be used on vessels that are upgrading to PMC's digital control system, D-MaC.

Independent left or right side connections are provided for oil pressure and drain to tank.  The solenoid valve assembly can be mounted to protrude on the left or right side.  Left side is illustrated.
