Torpedo & Ship Ranging Vessel

Canada - Department of National Defence
Four 33 m Torpedo & Ship Ranging Vessels
ABS Class crossABCU
HMCS Sechelt
HMCS Sikanni
HMCS Sooke
HMCS Stikine

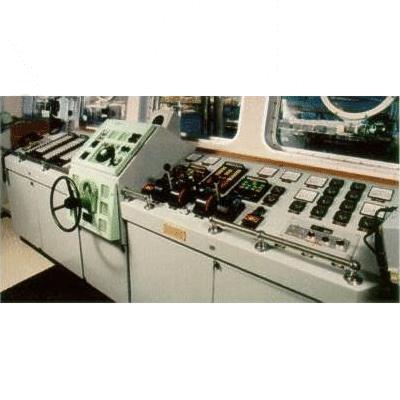

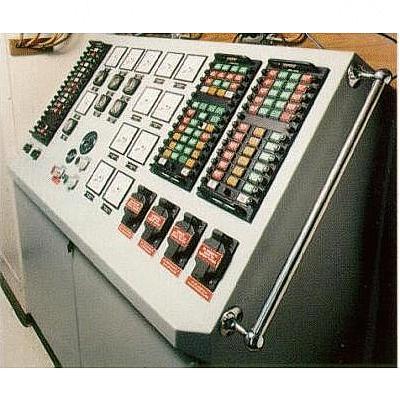

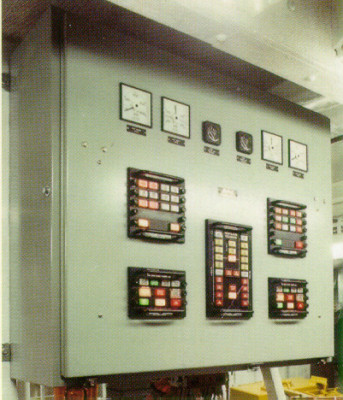

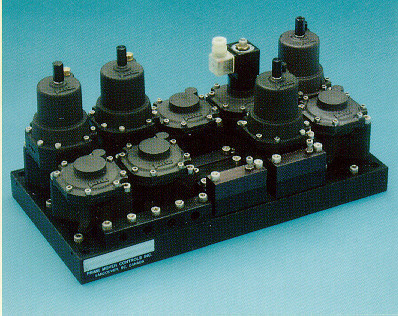

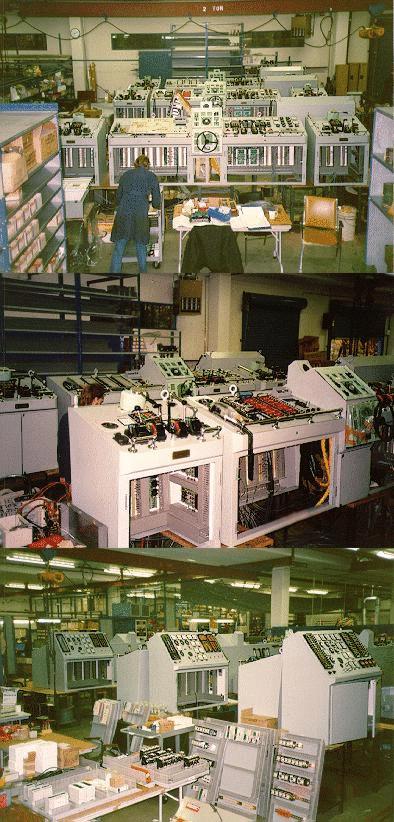

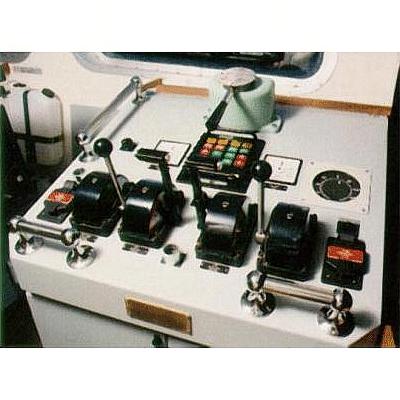

These vessels each have two fixed pitch propellers with slip clutches and shaft holding brakes. PMC manufactured the three bridge control consoles and one engineer's bridge console. The remote control system includes PMC's Type 5040 electric shaft system in the bridge, and MPC-10 pneumatic logic and control panels in the engine room. The MPC-10 panels features slip clutch control and dynamic braking. Other PMC marine products provided for these vessels include Type 8201 propulsion order telegraphs, Type 8421 alarm annunciator panels, Type 8012 navigation light control panels, Type 8502 tachometers and shaft brakes and Type 8118 Digital Tachometers.

Pictures
