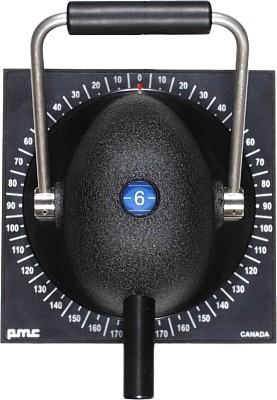

Azimuth Control Head
Power and 360° Control

Azimuth Control Head

Type 5360-1000

Features

  • Integrated propulsion control with 'one handed' operation of power and 360°
  • 24 volt illumination, 100% dimmable
  • Adjustable friction brakes
  • Removable terminal blocks for 14 to 20 AWG wires
  • Can be used with Type 8161 Azimuth Meter

Options

  • Custom power and rotation scales
  • Maximum four potentiometers for power
  • Maximum three potentiometers for rotation
  • Optional switches for power and rotation
  • Detents with adjustable detent forces

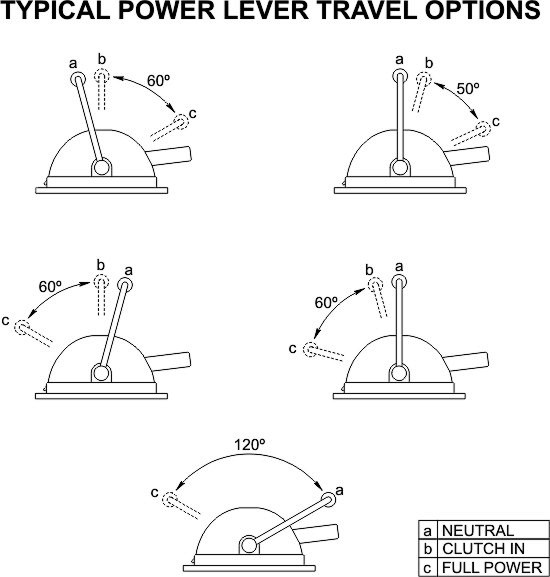

  • Numerous power lever travel options available
  • Available for limited rotation applications such as water jets or propulsion power combined with rudder control

Specifications

Environmental:

  • Corrosion resistant
  • Anodized marine grade aluminum case
  • Operating temperature -20 °C to +70 °C
  • Storage temperature -40 °C to +85 °C
  • Protection classification IP66 above console
  • Meets or exceeds marine classification and regulatory requirements for Electromagnetic Compatibility, Vibration, Temperature, Humidity and Voltage Variation

Physical:

  • Dimensions 196 mm H x 196 mm W x 314 mm D
    (7.72" H x 7.72" W x 12.35" D)
  • Weight 2.6 kg (5.8 lbs)
  • Flush mount
  • Removable terminal blocks for 14 to 20 AWG wires

Downloads

Type 5360-1000 Product Bulletin SB-5360-1000B

Typical Installations

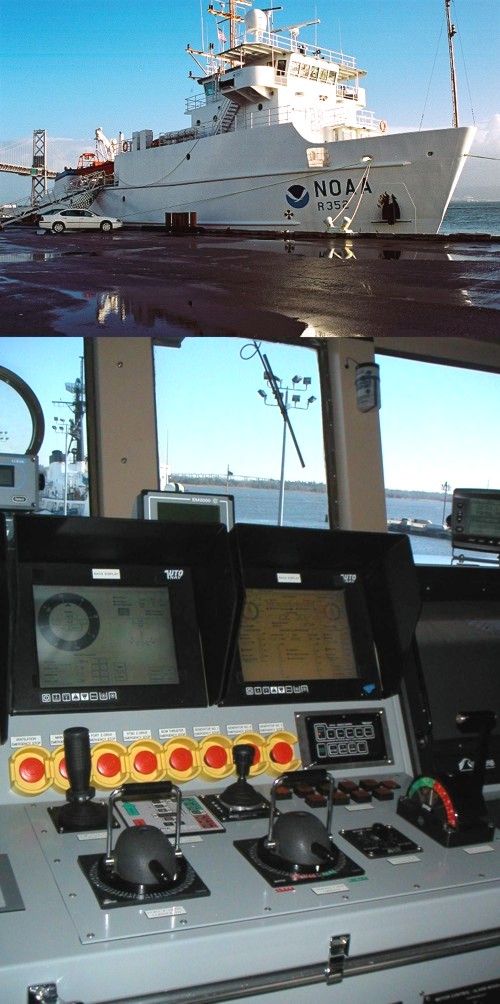

  • NOAA 56.7 m Multi-mission Oceanographic Research Vessel Nancy Foster.

  • The 75 m Offshore Patrol Vessel CGS Vigilant utilizes the Type 5360-1000 Azimuth control head with the vessel's bow thruster control system.

  • Self propelled Earth Globe Barge for Walt Disney World.
