Winch Controls

MCH-E Remote Control Head

Type 5800 MCH-E Electric
Type 5800-2000 MCH-EB Electric
Type 5022 RCH Pneumatic
Control Heads

Type 5078 SCH-E Electric
Type 5070/5071 SCH-V Pneumatic
Type 5072/5073 SCH-VAA Pneumatic
Control Heads

PMC designs and manufactures components and complete control systems for a variety of different types of winches.

Dependable Precise Control

Control heads provide remote control for a wide range of marine and industrial applications.

Spring Centered Control Lever

Spring centering control lever is available on MCH-E and SCH-AA control heads.

Illumination

Optional illumination is available with a variety of scales for the MCH-E and RCH control heads. A single illuminated scale facing the operator is used to eliminate glare from the window.

Watertight

Completely watertight design allows outdoor installation, even on models with illumination.

Corrosion Resistant

Control heads and actuators are built with materials that are compatible with the hostile marine environment.

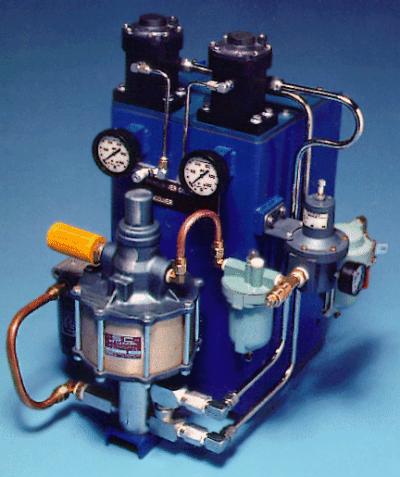

Shown below is a hydraulic power unit (pneumatically controlled) that was developed specifically for hydraulically activated winch brakes.

Hydraulic Power Unit
(Pneumatically Controlled)

Hydraulic Power Unit

Type 1545

Features

Description

Hydraulic pressure is generated by an air driven reciprocating pump and very accurately controlled by a specially designed pneumatic - hydraulic relay. The hydraulic output pressure from the relay is proportional to a pneumatic pilot signal.
